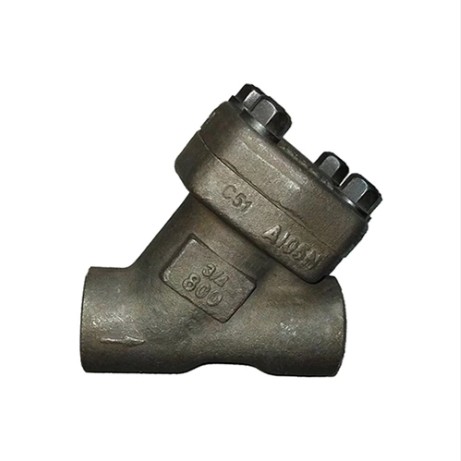

Y Type Check Valve
Y Type Check Valve
Product Description:
Technical Standard
| 1.Description: | Bronze Thread Connection Y Type Swing Check Valve |
| 2.Size: | 1/2"-4" |
| 3. Material: | Bronze,Al bronze ( C95800, C83600, C84400, B62) |
| 4. Connection: | Thread end (G, Rc, RP, BSP, BSPT ,NPT) |
| 5.Thread Standard: | BS21:1973,DIN 259/299,ISO 228,ANSI B2.1 |
| 6. Pressure: | CL125,CL150,CL200,CL300,CL350,200WOG ;PN16,PN20,PN25,PN40;5K,10K |
| 7. Design Standard: | MSS-SP-80,BS5154,JIS B2011 |
| 8. Testing Standard: | MSS-SP-80,BS5154,JIS B2011 |
| 9. Medium: | sea water, oil, liquefied gas,steam |
| 10.Temperature | -20°C≤T≤185°C |
| 11.Operation Model | WheelHand Operated |
Feature
| - Horizontal Y Type Swing Check valve |
| - Bronze (metal) disc |
| - Connected ends comply to NPT (ANSI BI.20.1), BSPT (BS21.0), BSPF |
| - 150PSI saturated stem to 185°C(365°F) |
| - 300PSI non-shock cold water, oil or gas |
